What is Doppler Ultrasound?
A Doppler ultrasound is a medical test that allows doctors to see how blood flows through your blood vessels, especially your veins and arteries — without cutting your skin or using harmful radiation like X-rays. It uses sound waves at very high frequencies that are sent into your body. These sound waves bounce back when they hit moving blood cells, and a computer turns the returning signals into pictures and graphs that show how fast and in what direction blood is flowing.
In simple terms, it’s like taking a video of blood moving inside your body. Instead of just seeing structures like in a normal ultrasound, a Doppler ultrasound shows movement, helping doctors find problems related to blood flow.
Why is Doppler Ultrasound done?
Doctors request a Doppler ultrasound when they want to check how blood is moving inside your body. It is useful in many conditions:
Common Uses
- Detect Blood Clots: It helps find clots in veins, especially in legs (e.g., deep vein thrombosis or DVT).
- Examine Vein Valve Function: In cases like varicose veins, the test shows whether vein valves are weak and blood is pooling backward.
- Check for Narrowed or Blocked Arteries: Blocked arteries can reduce blood supply to arms, legs, heart, or brain.
- Heart Conditions: When combined with a heart ultrasound (echocardiogram), it shows how blood flows through heart valves and chambers.
- Pregnancy Monitoring: It can check blood flow between mother and baby to ensure the fetus is getting enough oxygen and nutrients.
- Post-Treatment Evaluation: After vascular surgery or treatment, Doppler helps doctors monitor whether blood flow has improved or is stable.
- Brain and Neck Blood Flow: It can detect narrowing of arteries in the neck that may lead to stroke.
Because it doesn’t use radiation and doesn’t hurt, it is safe for all ages, including pregnant women
How Does Doppler Ultrasound Work?
The science behind Doppler ultrasound is based on something called the Doppler effect. This is a change in sound frequency that happens when sound waves bounce off moving objects — in this case, red blood cells. When blood cells move toward the ultrasound probe, the frequency of the returning sound changes slightly, and when blood moves away, the frequency changes in the opposite direction. These tiny changes help calculate speed and direction of blood flow.
Most Doppler machines have these important parts:
- Transducer: A handheld device that sends and receives sound waves.
- Computer and Monitor: Converts returning sound waves into videos, images, or graphs.
- Sound Gel: A clear gel applied to the skin so sound waves travel smoothly.
Types of Doppler Ultrasound
There are several versions of Doppler tests:

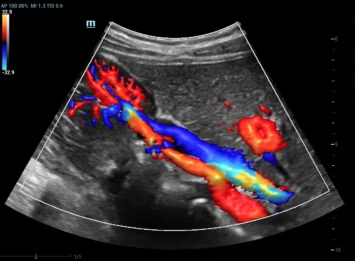

- Color Doppler: It shows blood flow in colors, usually red and blue so doctors can see direction and speed easily.
- Power Doppler: It is similar to color Doppler but shows more detailed flow, especially useful when blood moves slowly.
- Spectral Doppler: It displays blood flow in a graph, with speed on one axis and time on the other.
- Duplex Doppler: It combines regular ultrasound with Doppler flow analysis, so doctors see both anatomy and blood flow.
- How to Prepare for the Test?
Preparation depends on what part of your body is being examined. In many cases:
- You do not need to do anything special.
- If you smoke, your doctor may ask you to avoid smoking for a few hours before the test because nicotine narrows blood vessels and can change results.
- Sometimes you may be told not to eat or drink for a few hours before the test (especially for abdominal blood flow studies).
Most people can continue their normal daily activities right after the test.
What Happens During the Doppler Ultrasound?
The procedure is straightforward and painless:
- You may be asked to remove clothing or jewelry from the area being checked.
- You lie on a bed or exam table, usually on your back.
- The sonographer applies a special gel on your skin.
- The ultrasound probe (transducer) is moved gently over the gel-covered area.
- High-frequency sound waves travel into your body, bounce off moving blood cells, and return to the machine.
- A computer converts these signals into images or graphs that your doctor will review.
A typical Doppler session lasts about 30–60 minutes. There is no pain, and you can go home right afterward.
How the Doppler Report Is Interpreted
Once the test is completed, a radiologist or vascular specialist examines the results.
- Flow Direction
- Towards the probe – often colored red in images.
- Away from the probe – often colored blue.
These colors help show if blood is moving normally in the vessel.
- Flow Speed
Doctors review how fast blood is flowing.
- Normal vessels have a smooth and expected speed for that area.
- If the speed is too slow, it may indicate blockage or narrowing.
- Very fast flow may suggest the vessel is narrowed.
Speed and direction are shown in graphs or waveforms in a spectral Doppler chart.
- Waveform Shape
The shape of the wave in a graph tells how blood flows during the heart’s beating.
- A normal waveform has a consistent pattern.
- Abnormal changes may indicate obstruction, backflow, or valve problems.
- Comparison to Normal Values
Doctors compare your measurements against standard ranges.
If certain parts of the graph are outside the normal range, this may suggest narrowing, blockage, or valve dysfunction.
- Written Findings
Reports also include plain language descriptions such as:
- Normal blood flow
- No significant blockage
- Mild narrowing
- Severe obstruction
- Valve insufficiency or backward flow
These help your doctor decide the next step, whether that is treatment, medicine, or further tests.
- Advantages and Safety
Doppler ultrasound is:
- Non-invasive – nothing enters your body.
- Safe – no radiation is used.
- Painless – you feel only gentle pressure.
- Quick – results are often available the same day.
- Useful in many conditions, including heart, vein, artery, and pregnancy checks.
This is why it’s one of the most commonly recommended imaging tests in medicine.
